Identification

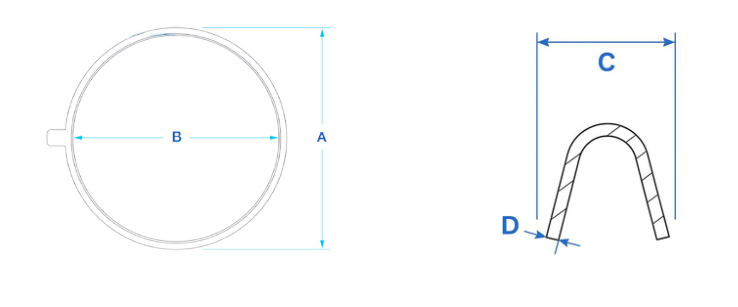

Gasket section diagram
A
Gasket outer dimension (OD)
B
Gasket inner dimension (ID)
C
Width of gasket
D
Depth/thickness of gasket

Gasket 1900000036
Location
Oil Inlet
A - OD
0.00
B - ID
0.00
C - Width
1.00
D - Depth
0
Sección
Flat
Gasket 1900000041
Location
Turbine Inlet
A - OD
0.00
B - ID
0.00
C - Width
0.50
D - Depth
0.9
Sección
Stepped
Material
Steel
Gasket 1900000042
Location
Oil Outlet
A - OD
0.00
B - ID
0.00
C - Width
1.10
D - Depth
0
Sección
Flat
Gasket 1900000043
Location
Oil Outlet
A - OD
0.00
B - ID
0.00
C - Width
1.00
D - Depth
0
Sección
Flat
Gasket 1900000044
Modelo del Turbo
GT15-25
Location
Electronic Actuator
A - OD
0.00
B - ID
0.00
C - Width
1.00
D - Depth
0
Sección
Flat
Gasket 1900000045
Modelo del Turbo
GT15-25
Location
Bearing Housing - Oil Inlet / Outlet
A - OD
0.00
B - ID
0.00
C - Width
0.80
D - Depth
0
Sección
Flat
Material
Steel
Gasket 1900000047
Location
Oil Flange Gasket
A - OD
0.00
B - ID
0.00
C - Width
0.30
D - Depth
0.7
Sección
Stepped
Material
Steel
